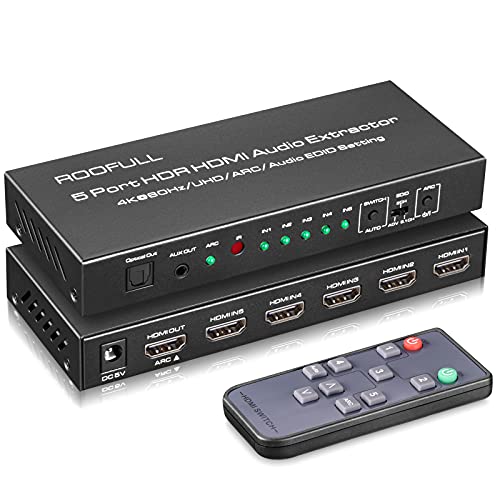

ROOFULL 5 Port 4K HDMI Switch with Audio Extractor & IR Remote | 5 In 1 Out 4K@60Hz HDMI 2.0 Switcher with Optical/AUX Audio Out, Dolby Vision/Atmos, Auto-Switching, HDCP 2.2, HDR 10, 18Gbps - color: Black (with Audio Extractor)

About this item

• 【5 In 1 Out HDMI Switcher】If you're tired of the hassle of frequently swapping out HDMI cables between multiple devices due to limited input ports on your TV or monitor, ROOFULL Premium 5 port HDMI switch makes it easier to connect up to 5 of your source devices such as PS5, Xbox, Switch, and Roku to a single input port on your TV or monitor, and seamlessly switch between games, movies, and TV shows without the need for constant unplugging and replugging of cables
• 【True 4K@60Hz Ultra-HD】All ports on ROOFULL are HDMI 2.0a version and officially authorized by HDMI, support real 4K@60Hz resolution (Maximum 4096x2160), HDCP 2.2, Dynamic HDR10 4:4:4/4:2:2/4:2:0, Dolby Vision, Dolby Atmos, 3D, CEC for a truly breathtaking image and audio transmission. This HDMI switch is also backward compatible up to 4K@30Hz, 2K@120Hz, and 1080P@240/120/144Hz. (Tips: For 4K@60Hz resolution, recommend <10ft 24AWG or 26AWG HDMI cables)

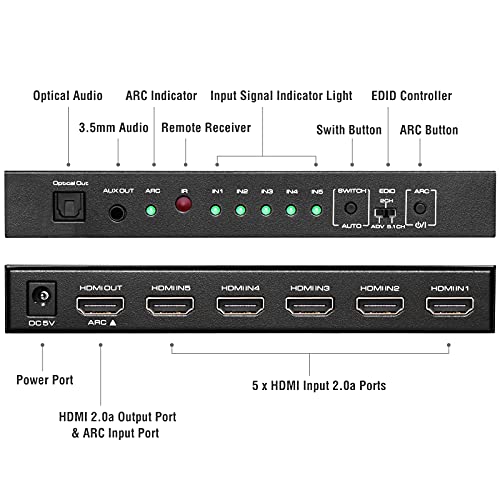

• 【Convenient Remote Control & Manual Switch】Effortlessly switch between source devices from the comfort of your couch or bed with the remote control (The control range is within 33 FT). A manual switch lets you switch among 4 devices at any time with a flick of the switch button. With 5 LED indicators that clearly show you which port is active
• 【Can I Use Auto-switching?】When automatic switching is enabled, it works by detecting the source device's voltage. If the current active device is turned off (not in standby mode), the switch automatically jumps to another active device. However, some devices (such as the PS5/4/4 Pro, Amazon Fire TV, Apple TV, Xbox One/S/Series X, and Nintendo Switch) continue to emit a weak voltage even when turned off, preventing the switch from jumping to another active device, this is why some devices cannot use the auto-switching function

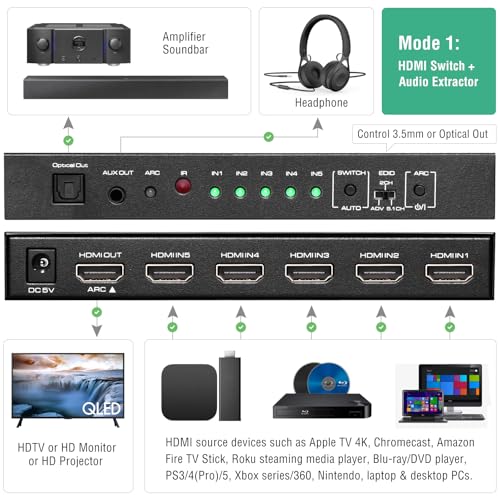

• 【Extract Audio Out & 3 EDID Audio Settings】Split audio from HDMI source devices and output via Optical SPDIF or 3.5mm AUX to your soundbar, receiver, headphone, or surround sound system. When using the 3.5mm AUX port, please switch to 2CH and set the audio format to LPCM/PCM in source devices. When using the Optical port, please switch to 5.1CH and set the audio format to 5.1CH Dolby Digital/DTS or PCM/LPCM in source devices. When switching the EDID to ADV, you can use Dolby HD, DTS HD, and Dolby Atmos audio format via HDMI port

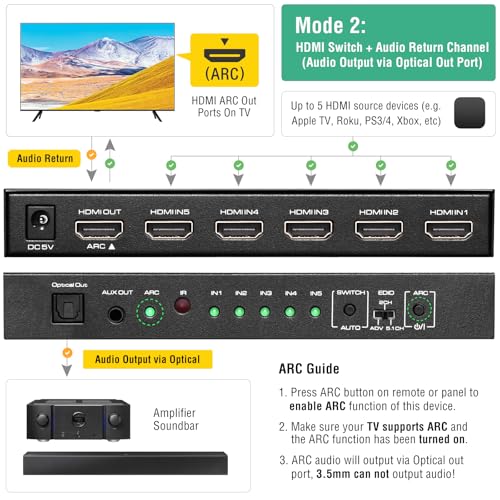

• 【ARC Supports】Audio Return Channel function allows the TV to send ARC audio to the non-ARC sound system. Please note: DO NOT support eARC; ARC audio comes from optical and HDMI port, not 3.5mm jack; TV needs to be ARC capable; Set the audio format to Dolby-AC3, DTS, or LPCM/PCM. (NOTE: It is not recommended to use with HDMI ARC soundbars.)
• 【Compatible with Most Devices】ROOFULL 4K HDMI switcher with the latest multi-signal processing technology is compatible with a wide range of HDMI source devices, including PS5/3/4/4 pro, Xbox series x/s, Xbox 360, Fire TV Stick, Blu-ray player, Switch, Apple TV, DVD player, Roku, Chromecast, laptop, desktop PC, HDTV, and projector (We provide up to 2 years after-sale without any limitations)

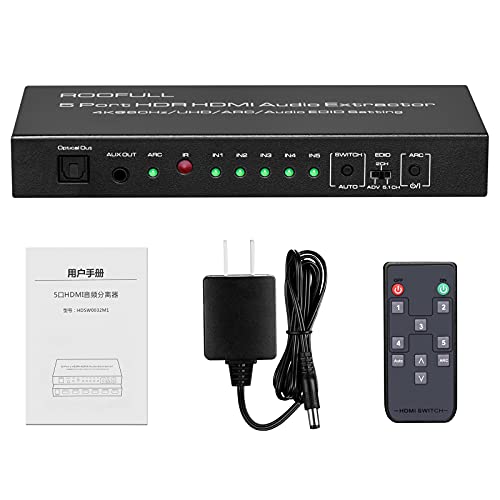

• 【Note】To reach 4K@60Hz, please use an HDMI cable with a bandwidth of 18Gbps or above. The total length of the input and output HDMI cables should be within 10 feet. 【Package Includes】HDMI Switch Audio Extractor x 1, IR remote x 1, Power Adaptor x 1, User Manual x 1

Overview

• Color: Black (with Audio Extractor)
• Connector Type: HDMI, HDMI to HDMI + Optical/AUX Out
• Brand: ROOFULL
• Compatible Devices: DVD Player, Gaming Console, Monitor, Projector, Television
• Cable Type: Auxiliary, HDMI
