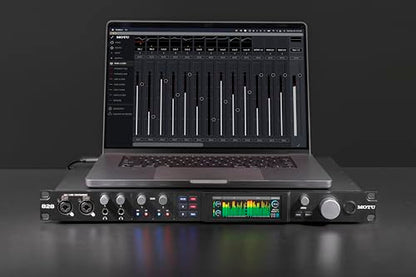

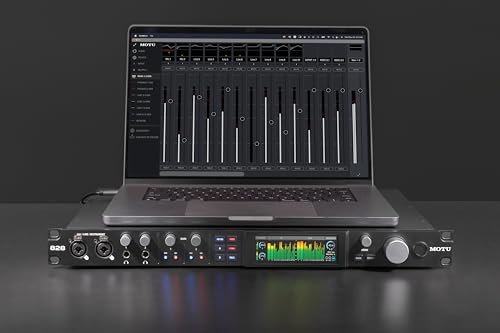

MOTU 828 28x32 USB3 audio interface for Mac, Windows and iOS with mixing and effects

About this item

• Next-gen 28 x 32 USB3 audio interface — Builds on 22 years of proven success as an industry-leading audio interface brand.
• New 3.9-inch TFT display — The bright, 24-bit RGB LCD provides 480 x 128 pixel high-resolution metering for all analog and digital I/O, plus detailed status info and access to hardware settings from a simple and convenient menu.
• Superb analog audio quality and high-end converters — Renowned ESS Sabre32 DAC technology delivers 125 dB dynamic range. Support for all standard sample rates up to 192 kHz.
• Ultra-low latency and proven, high-performance MOTU drivers — Round-trip latency (RTL) performance as low as 2 ms at 96kHz with high-performance DAW hosts.
• Universal connectivity — Connects to your computer with 5 Gbps USB3 (compatible with USB2) for up to 60 audio channels. Class-compliant firmware and industry standard drivers work with any audio apps. Connects to an iPad with USB-C or a Lightning adapter kit (sold separately).
• 60 simultaneous audio channels — 28 inputs and 32 outputs, including two combo XLR/TRS mic/line/hi-Z guitar inputs with send/return inserts, 8 TRS analog (line-level) in/out, separate main outs on XLR jacks, two banks of 8-channel optical I/O, stereo RCA S/PDIF digital I/O, and two front-panel headphone outputs.
• Advanced mic channels — Cutting-edge components deliver ultra-transparent sound with -114 dB THD+N, 118 dB dynamic range and -129 dBu EIN. Each mic channel provides individual controls for +74 dB of preamp gain, -20 dB pad, 48V phantom power, and phase invert. All settings can be controlled remotely from a computer or iOS device. Each mic channel includes a dedicated send/return insert for outboard gear processing.
• Flexible insert returns — When nothing is connected to the front-panel mic inputs, the two rear-panel returns function as additional line inputs with identical signal path characteristics as the other eight line inputs.
• DSP mixing and effects processing — Flexible 24-input digital mixer with 8 stereo busses and DSP effects, including reverb, 4-band EQ, gate and compression.

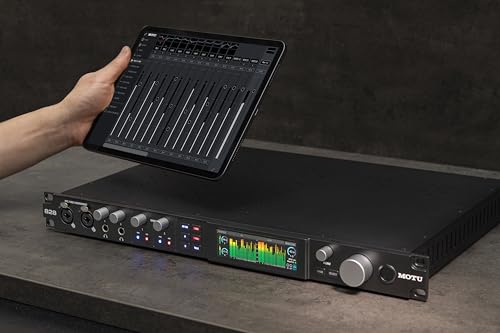

• Wi-Fi control — If the 828 is connected to a computer on your Wi-Fi network, you can control everything wirelessly from the CueMix 5 app running on mobile devices or other computers on the same network — even multiple devices at the same time. Manage access to the 828 with network discovery and password protection.

Overview

• Brand: MOTU
• Compatible Devices: Guitar, Headphone, Microphone, Personal Computer, Speaker
• Supported Software: All audio software
• Connectivity Technology: USB
• Number of Channels: 60
